How Rattraps Became Beartraps---In 1899

Last week, I wrote about "rattrap" pedals.  They were the kind of pedals that came on most '70's Bike Boom-era ten-speeds, and have continued to enjoy popularity with cyclo-tourists, motocross riders and commuters. The great advantages of them are that they can be used with or without toeclips, and ridden on either side (unlike most quill and road clipless pedals, which must be flipped to the right side).  As I mentioned, two of the most popular models of rat-traps are the Lyotard 460 (which hasn't been made in at least two decades) and the MKS Sylvan.

Road "quill" pedals, which were all but displaced by the advent of easy-to-use clipless pedals from Look and Time, would sometimes have the "sawteeth" on the side of the pedal on which the cyclist pedaled.  The other side was usually cut away, and thus unrideable.  They were so made to improve cornering clearance, a definite concern for criterium and track riders.

(Track pedals usually had cages like those of road "quill" pedals, without the "quill".)

Famous examples of road quill pedals are the Campagnolo Record and its many imitators, and Lyotard 45.

Double-sided quill pedals were all but nonexistent until around 1980.  At that time, the cults of BMX and mountain biking were spreading beyond their respective Southern and Northern California cradles.  That was also about the time equipment was being developed specifically for those new disciplines.



SunTour BMX pedals, circa 1980

Possibly the nicest double-sided quill came from  SunTour.  They had the same bearings, axles and bodies as SunTour's wonderful track and road pedals, which were made by MKS.  (The "Supreme" and "Nuevo" pedals, currently made by MKS, are virtual clones of the pedals made for SunTour.)  Some of the early mountain bikes came with those pedals; "bear trap" pedals, developed soon after, were essentially BMX pedals with curved plates.

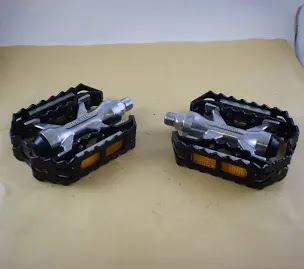

SunTour "bear trap" pedals, circa 1985

When double-sided quill pedals first appeared on the market, many of us wondered why no one had ever thought to make them earlier.  Well, it turns out that someone had:

In 1899, the Bay State Stamping Company of Worcester, Massachusetts introduced the Bennet pedal.  Don't you just love the clover cutouts in the cages?

I tried to find out how long these pedals were produced.  They were introduced just as the first American Bike Boom was about to dissipate.  So, I suspect they weren't made for very long, and the design--like many others from that period--was forgotten.

Aside from the cage shape, the Bennet had a couple of other interesting features.  One is a dust cap that springs into the body and is held by latches. In contrast, most other dust caps are either screwed on or pressed in and often fall off, especially when the bike is ridden over rough roads or trails.   The other innovation was a bearing cone that was keyed rather than threaded to the axle, and held in place with a set screw.  According to the manufacturer, this system allowed for one-tool adjustments.  It also eliminated the problem of locknuts that came loose and allowed the cone to screw up and crush the bearings.

I would love to know how well those features worked. If they were effective, the Bennet was certainly well ahead of its time.  Even if they weren't, the Bennet is interesting as a kind of proto-BMX or -mountain bike pedal.

Paint...I Mean, Anodize...It Black

To many bicycle enthusiasts, “classic” components come in a spectrum of colors ranging from silver mist to gleaming chrome.  Some purists—or pedants who fancy themselves as such—believe that all components worth using are polished, preferably to a mirror finish.  Cranksets like the Stronglight 93, 63 and 49, Specialites TA Pro Vis (a.k.a. Cyclotouriste) or Nervar Star are among the preferred components of those with such aesthetic preferences.  So do Maxicar hubs, Huret Jubilee derailleurs and old-style 3TTT bars and stems.

Stronglight 93 crankset in its natural habitat:  on a Peugeot PX-10.

 They’re all lovely pieces and perfectly valid on modern as well as classic bikes.  And, oh, yes, Campagnolo Gran Sport and Record stuff made until 1985 or so.  They had a more buffed finish but took on a nice sheen that looked great on just about any bike, especially a silver Cinelli.

Huret Jubilee in its natural habitat:  a Rene Herse



But not all components made before the lava field of carbon fiber oozed across, and blanketed, the cycling landscape looked like they were chromed or polished so that you could use them for shaving or putting on your makeup.  A couple of years before I started taking rides of more than a few miles—a year or two after the ‘70’s Bike Boom ended—a cult of sorts developed around black anodized parts.

Original Campagnolo Super Record rear derailleur, circa 1974

It seems to have started when, in the middle of the decade, Campagnolo introduced its Super Record line.  It was identical to the Record line (which included the Nuovo Record rear derailleur) but included titanium bolts and bottom bracket and pedal axles.  And, to distinguish it visually from the Record line, the knuckles of the rear derailleur were anodized black.  So were the pedal cages and chainrings.

(The hubs and brakes were the same as those in the Record line.  The brake levers had drilled-out handles and, ironically, weighed two grams (!) more than the non-drilled levers.  Apparently, the handles were made of thicker metal to compensate for the drilling.)

Sugino Mighty crankset, circa 1975

Maillard 700 pedals.  Don't you just love rhe red dust caps?

Once Campagnolo introduced its Super Record components, other companies got onto the black-anodized bandwagon.  Stronglight, Shimano, Sugino and other chainrings were available in noir versions.  Lyotard, Maillard, Mikashima (MKS) and Kyokuto (KKT)—the leading pedal makers, along with Campagnolo, at that time—offered black-caged and all-black versions of their products.  And, once 3TTT and Cinelli started selling black handlebars and stems, Phillipe and Pivo of France as well as Nitto and Sakae Ringyo of Japan followed suit.

SunTour Cyclone rear derailleur, circa 1975

SunTour and Shimano, naturally, offered several models of their derailleurs with black knuckles, like Campagnolo, or all-black versions.  I think the SunTour Cyclone silver rear derailleur with black accents is the prettiest shifting mechanism, besides the Huret Jubilee, ever made.

Shimano Dura Ace hub, circa 1976

And Shimano went as far as to offer all-black versions of its Dura Ace components.  I think their hubs, with bright silver oil hole covers and axle nuts, looked particularly nice.  Their silver crankset with black rings was also nice.

Original Jim Blackburn rack on a Dawes Galaxy:  verrry '70's!

When those black components—and Jim Blackburn racks and water bottle cages—found their way to the market, I—like most novitiate cyclists of the time—had never seen anything like them before.  But a very few longtime riders—like Fred DeLong, the long-serving technical editor of Bicycling! Magazine—had seen an earlier fad for black anodized components in the years before World War II.  DeLong mentioned it in one of his columns.  And he—or some other bicycle writer of the time—mentioned a still-earlier time, around the turn from the 19^th to the 20^th Century, when black parts were all the rage.

The mid-70s mini-craze for black parts lasted a few years.  Then, most component makers quietly dropped them.  About a decade later, black chainrings and, later, other parts, started to appear on mountain bikes.  Road bikes reverted to the polished- (or buffed-) silver look in parts.  That wasn’t all bad, especially if said components were from SunTour’s Superbe Pro line.

SunTour Superbe Pro track hub

That aesthetic—and SunTour itself—disappeared around the time carbon-fiber bikes and parts reached the mass market.   The past few years, though, have seen something of a resurgence of shiny silver stuff as cyclists (mainly non-racers) are discovering (or re-discovering) the versatility, durability, beauty and ride quality of classic steel frames, or modern frames inspired by them.
