17 October 2018

Holy V, Jubilee!

In October 1964, Tetsuo Maeda filed a patent application in Japan for what would become, in my opinion, one of the two or three most important derailleur innovations in history.

It was the brainchild of his chief designer, Nobui Ozaki.  He was no doubt trying to make a derailleur that was easier to shift and shifted more accurately than the ones available at that time.  Did he realize that it would influence derailleur design for the next half-century?  Did Maeda, the owner of the company that employed Ozaki, know that for two decades, other derailleur manufacturers would wait, with bated breath, for his patent to run out?

Well, both of those scenarios came true.  You see, the patent Maeda filed in his home country--and a month later in the US--would cover a design still used today, in one form or another, on any rear derailleur that has even a pretense of quality.




I am talking about the SunTour Gran-Prix.  Over the next few years, SunTour would refine its design.  For one thing, it would replace its original single-spring design (The same spring that operates the parallelogram also tensions the chain cage.) with separate springs for each function.  And steel parts would be replaced by alloy ones, which in turn would become more sculpted and rounded.

The result was that the 1964 Gran Prix



would evolve into the first "V" derailleur in 1968.

I would put one of those on one of my bikes.  I mean, how can you not love a derailleur with those pivot bolts?

Of course, the V was further refined and became the V Luxe.  One thing I find interesting about the V and V Luxe is that they were lighter than most derailleurs made at the time--or even today.

The V, according to Michael Sweatman of Disrealigears, weighed 218 grams.  That is only 13 grams (less than half an ounce) more than another influential derailleur that came out exactly 50 years ago



yes, the Campagnolo Nuovo Record--which, of course,was a refinement of the earlier Record and its progenitor, the first Gran Sport parallelogram rear derailleur.

For comparison's sake, the 1968 SunTour V weighs almost exactly the same as a Shimano Ultegra 6400 (introduced in 1988), 6401 (1992) or 6500 (1998)--or the Dura Ace 7402 (made from 1989 to 1996), all of which are in the 210 to 220 gram range. Later DA rear derailleurs (the 7700 series onward) shed 10 to 15 grams--and that with the use of a titanium upper pivot bolts!

The funny thing is that no matter how light a component is, someone wants it even lighter.  So I guess I shouldn't have been surprised to find this



I mean, how much weight did those holes take out of that "V" derailleur?

I guess I shouldn't be too critical, though.  After all, not only was the Campy NR drilled out--or, sometimes, slotted in its parallelogram--so was the lightest rear derailleur of them all:



In case you were wondering:  The Huret Jubilee weighed 145 grams--before anyone touched it with a drill, mill or lathe!


24 April 2017

Before EX, It Was CLB

In 1978, Shimano introduced its Dura Ace "EX" gruppo.  It was hailed (at least by Shimano's marketing department) as revolutionary.  Indeed, the gruppo included "innovations" that cyclists who didn't know much about the history of cycling (which would have included me) would have seen as world-changing.




As with most "innovations", they had been done before.  Features that distinguished this new gruppo, aside from its light weight and distinctive appearance, included "dropped" pedals with axles that were shorter but of larger diameter than others.  That was supposed to make the pedal/crank interface stiffer, and putting the pedal platform below the line of the axle was supposed to be both more ergonomic and aerodynamic than traditional setups.  I never tried it myself, for the same reasons most cyclists I know didn't:  Those pedals and cranks were not interchangeable with any others.





Speaking of the cranks:  They were very nice, and included a one-key release, eliminating the need for a crank remover tool.  That is one "innovation" that has endured.  Another is one that many of us are riding today:  a "freehub" with a cassette carrier integrated into the hub body.  Until that time, almost every derailleur-equipped bike, as well as those with single-speed freewheels, used freewheels that screwed onto the hub body.




Of course, the "Uniglide" hub, as Shimano would call it, was not a new idea.  SunTour made a hub with an integrated cassette carrier--the "UnitHub--a decade earlier; half a decade before that, Cinelli offered its "Bivalent" hub, which is often seen as the predecessor of modern cassette hubs.  But, in part through aggressive marketing campaigns, Shimano's cassette system is the one that displaced screw-on freewheels as the standard for bikes of any and all kinds.




One more "innovation" that wasn't was the brakes, which I liked.  The extension that held the cable adjuster and quick release was shortened, and a stiffener was added between it and the main part of the brake arm.  And the quick release was one most cyclists hadn't seen before:  It rotated and had fewer moving parts than the ones found on Campagnolo and other brakes.


CLB Professional


Surprise, surprise:  Three years earlier, CLB introduced their "Professional", a brake with a similar profile--and the same kind of quick release.  If I were a collector or simply wanted to build a bike strictly based on the "cool" factor of the parts, I would probably choose the CLB Pro.  It and the titanium-bolted Galli Professional, which came out that same year (as did the SunTour Cyclone derailleurs), were the lightest brakes of their time.


CLB Competition, c. 1950


Now, the few Americans who bought and used CLB (Charles Lozier Bourgoin, the founder of the company) Pros probably thought the quick release was novel.  Actually, CLB had been using it--though in less-refined iterations--as far back as the 1940's, when they first started making brakes.  Interestingly, the company's center-pulls--introduced  in the early '50's and based heavily on the Mafac's product--used cable hangers that included a very similar quick release mechanism.

What got me to thinking about all of this?  Well, I was looking for some parts on eBay when I came across this:




It appears to be a later or lower-priced version of the Professional.  What really struck me, though, was the "funky" (as the listing's copy aptly puts it) green and white finish. As far as I knew, CLB, being the very traditional and very French company that it was, never offered their components in color besides silver.  Actually, with the exception of the Professional, most of their brakes were, well, not finished at all, from all appearances:  They had a dull grey aluminum color.  Mafacs, by comparison, seemed like jewelry.

Although that green and white brakeset is probably 30 or more years old, it would fit right in with the graphics on many new bikes!

Apparently, CLB ceased to exist a few years after they were acquired by Sachs in 1984. Three years earlier, Sachs also bought Huret, Maillard and Sedis--three of the mainstays of the French bicycle industry.  While components were manufactured in France and marketed under the Sachs/Huret, Sachs/Maillard and Sachs/Sedis names for  a few years before becoming simply Sachs, the CLB name seems to have died not long after its acquisition.

But CLB's designs live on, in other forms:  There are brakes with similar quick releases.  And the aerodynamic shapes of today's brakes owe something to the design of the Professional.

06 April 2016

More Aerodynamic? More Ergonomic? Maybe Not, But They Were Pretty

A few posts ago, I mentioned the Shimano Dura-Ace aerodynamic (EX and, later, AX) components of the early 1980s.  While the components themselves didn't catch on quite as much as Shimano hoped, they had (and still have) their devotees. More to the point, they have their influence on today's components and bikes.

Perhaps no part of the EX system better epitomized the ensemble's inability to catch on with the cycling public and its long-term impact than the Dyna-Drive pedals.






The Dura Ace EX Dyna-Drive (DD) crank was actually a lovely piece of work and would look as appropriate on a current bike as one of the era, or even an earlier time.  It resembled other Dura Ace cranks made since, more or less.  Its spider and pedal arm have a finish and shape like those of its successors, save for the flare near the end of the crank arm.  There was a reason for that:  the pedal mounting hole was about double the diameter of that on any other crank.





That oversized pedal hole was made to accommodate the DD pedal, which had eliminated the through-axle found in most pedal bodies in favor of something shaped more like a plumbing joint that mounted outboard of the pedal.  The bearings were inside of it.  In contrast, most pedals have a set of bearings inside each end of the body.



In addition to lighter weight (about a third less than Campagnolo and other quill-caged road pedals of the time), this setup, because of the size of its mounting, was supposed to be stiffer. I never used the pedals or crank myself, but I knew a couple of cyclists who did and wouldn't use anything else.









The mounting system also resulted in a pedal platform that was lower than, rather than level with, the center of the mounting hole in the crank arm.  As a result, at the bottom of the pedal stroke, the bottom of the foot was lower than the pedaling axis.  This was supposed to offer better biodynamics in the pedal stroke, which would lead to a more even power transfer throughout the rotation of the pedal.




To me, it sounds like the benefit the Biopace (slightly elliptical) chainrings Shimano would make around the same time.  As I mentioned in an earlier post, I never used Biopace for any length of time, so I can't say whether or not they actually offered the claimed benefit.  Likewise for the DD pedals, which I never used.  I will say, however, that the few cyclists I knew who used them liked them very much.

Shimano made adapters so that conventional pedals could be used with DD cranks, or so that DD pedals could be used with conventional cranks.  I don't know anyone who used those, but I saw some cyclists ride conventional Dura Ace cranks and the pedals of their choice with the other aerodynamic EX parts.

Eventually, the 600 racing series and the then-new Deore touring and mountain bike parts would also offer the Dyna Drive option.   They were even less popular in those ensembles than in Dura Ace.  It makes sense, especially for the touring ensemble:  If your DD  pedal hit a curb or got snagged on a rock or tree root in the middle of nowhere, you probably wouldn't find a replacement--or even an adapter--in the local farm machinery shop where bike repairs are done.

Still, those pedals have had a lasting influence:  Look and other contemporary pedals, while they don't completely eliminate the through-axle, use a shorter axle than on earlier pedals.  More important, though, they use one set of oversized bearings on the side of the pedal that mounts to the crank, eliminating the bearing on the outer part of the pedal.  This makes lighter, more streamlined pedals possible.

And, of course, the shapes of many of today's pedals owe much to the aerodynamic design of DD pedals, which in turn were influenced by the Lyotard No. 23, a.k.a. Marcel Berthet, platform pedal.

12 December 2014

Paint...I Mean, Anodize...It Black



To many bicycle enthusiasts, “classic” components come in a spectrum of colors ranging from silver mist to gleaming chrome.  Some purists—or pedants who fancy themselves as such—believe that all components worth using are polished, preferably to a mirror finish.  Cranksets like the Stronglight 93, 63 and 49, Specialites TA Pro Vis (a.k.a. Cyclotouriste) or Nervar Star are among the preferred components of those with such aesthetic preferences.  So do Maxicar hubs, Huret Jubilee derailleurs and old-style 3TTT bars and stems.

Stronglight 93 crankset in its natural habitat:  on a Peugeot PX-10.

 They’re all lovely pieces and perfectly valid on modern as well as classic bikes.  And, oh, yes, Campagnolo Gran Sport and Record stuff made until 1985 or so.  They had a more buffed finish but took on a nice sheen that looked great on just about any bike, especially a silver Cinelli.

Huret Jubilee in its natural habitat:  a Rene Herse



But not all components made before the lava field of carbon fiber oozed across, and blanketed, the cycling landscape looked like they were chromed or polished so that you could use them for shaving or putting on your makeup.  A couple of years before I started taking rides of more than a few miles—a year or two after the ‘70’s Bike Boom ended—a cult of sorts developed around black anodized parts.

Original Campagnolo Super Record rear derailleur, circa 1974




It seems to have started when, in the middle of the decade, Campagnolo introduced its Super Record line.  It was identical to the Record line (which included the Nuovo Record rear derailleur) but included titanium bolts and bottom bracket and pedal axles.  And, to distinguish it visually from the Record line, the knuckles of the rear derailleur were anodized black.  So were the pedal cages and chainrings.


(The hubs and brakes were the same as those in the Record line.  The brake levers had drilled-out handles and, ironically, weighed two grams (!) more than the non-drilled levers.  Apparently, the handles were made of thicker metal to compensate for the drilling.)

Sugino Mighty crankset, circa 1975

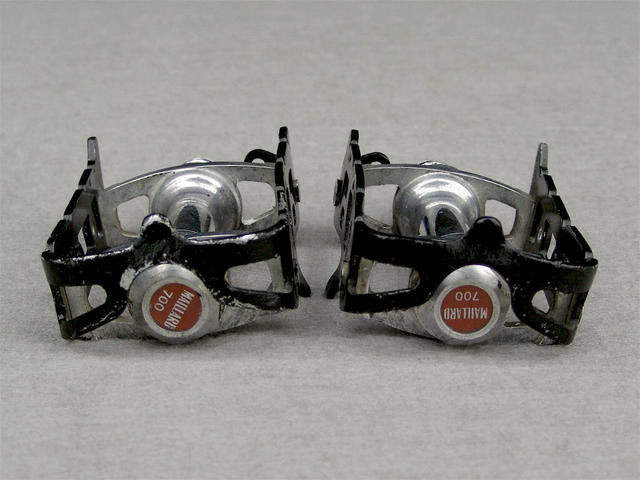

Maillard 700 pedals.  Don't you just love rhe red dust caps?



Once Campagnolo introduced its Super Record components, other companies got onto the black-anodized bandwagon.  Stronglight, Shimano, Sugino and other chainrings were available in noir versions.  Lyotard, Maillard, Mikashima (MKS) and Kyokuto (KKT)—the leading pedal makers, along with Campagnolo, at that time—offered black-caged and all-black versions of their products.  And, once 3TTT and Cinelli started selling black handlebars and stems, Phillipe and Pivo of France as well as Nitto and Sakae Ringyo of Japan followed suit.

SunTour Cyclone rear derailleur, circa 1975



SunTour and Shimano, naturally, offered several models of their derailleurs with black knuckles, like Campagnolo, or all-black versions.  I think the SunTour Cyclone silver rear derailleur with black accents is the prettiest shifting mechanism, besides the Huret Jubilee, ever made.

Shimano Dura Ace hub, circa 1976



And Shimano went as far as to offer all-black versions of its Dura Ace components.  I think their hubs, with bright silver oil hole covers and axle nuts, looked particularly nice.  Their silver crankset with black rings was also nice.

Original Jim Blackburn rack on a Dawes Galaxy:  verrry '70's!



When those black components—and Jim Blackburn racks and water bottle cages—found their way to the market, I—like most novitiate cyclists of the time—had never seen anything like them before.  But a very few longtime riders—like Fred DeLong, the long-serving technical editor of Bicycling! Magazine—had seen an earlier fad for black anodized components in the years before World War II.  DeLong mentioned it in one of his columns.  And he—or some other bicycle writer of the time—mentioned a still-earlier time, around the turn from the 19th to the 20th Century, when black parts were all the rage.



The mid-70s mini-craze for black parts lasted a few years.  Then, most component makers quietly dropped them.  About a decade later, black chainrings and, later, other parts, started to appear on mountain bikes.  Road bikes reverted to the polished- (or buffed-) silver look in parts.  That wasn’t all bad, especially if said components were from SunTour’s Superbe Pro line.


SunTour Superbe Pro track hub





That aesthetic—and SunTour itself—disappeared around the time carbon-fiber bikes and parts reached the mass market.   The past few years, though, have seen something of a resurgence of shiny silver stuff as cyclists (mainly non-racers) are discovering (or re-discovering) the versatility, durability, beauty and ride quality of classic steel frames, or modern frames inspired by them.
